Quick Start Guide

This guide walks through plotez from the simplest possible plot up to real-world workflows. Every example corresponds to a runnable script in the examples/ directory.

Basic Plotting

Minimal Example

The absolute minimum code to produce a labeled plot. auto_label=True generates "X", "Y", and "Plot" as axis and title labels automatically.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_xy

x = np.linspace(0, 10, 100)
y = np.sin(x)
plot_xy(x, y, auto_label=True)

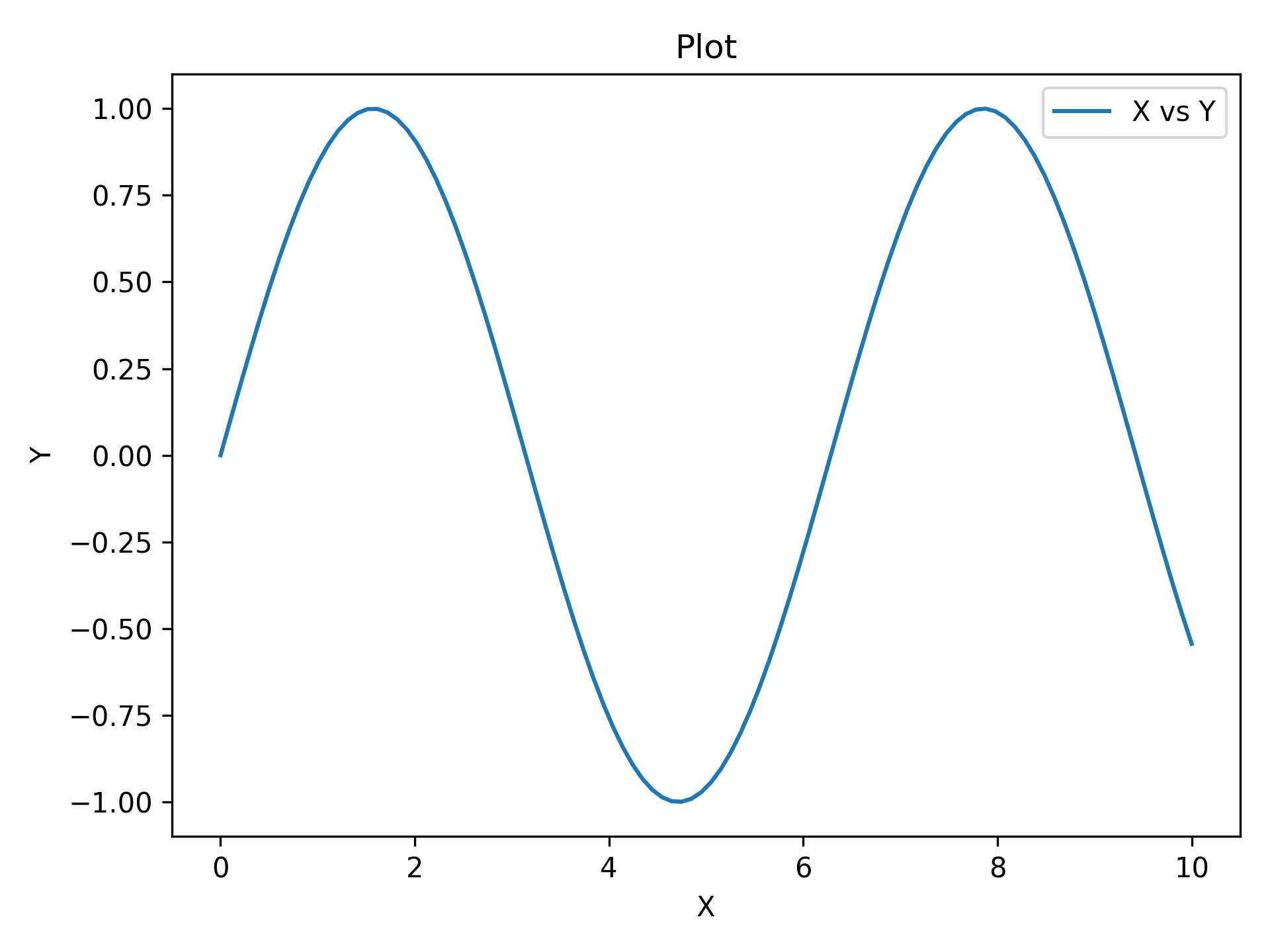

_images/RTD_E1_simple.png

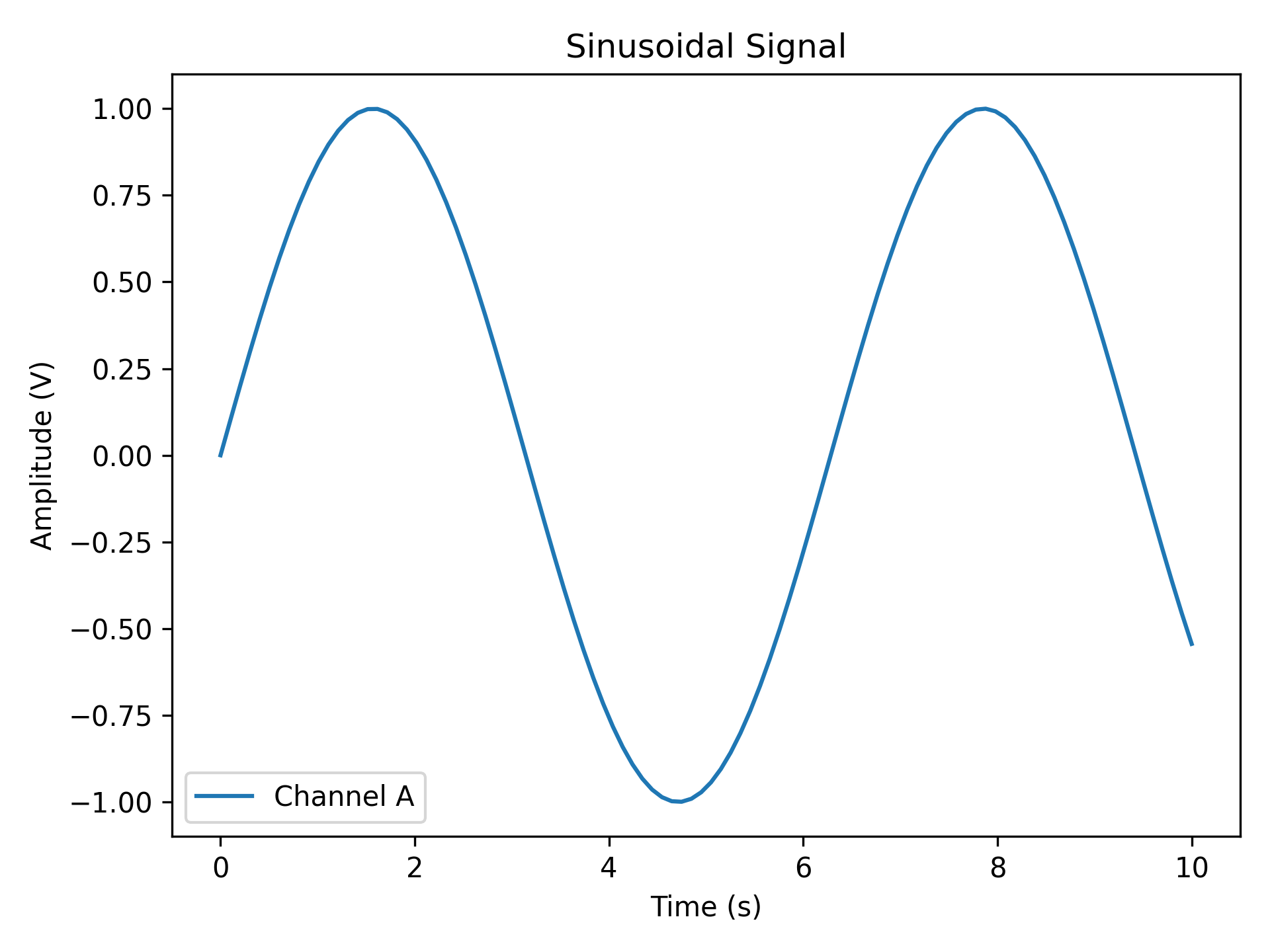

Custom Labels

Replace auto-generated labels with meaningful scientific ones. data_label appears in the legend; all label strings support LaTeX notation (e.g. r'$\sin(x)$').

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_xy

x = np.linspace(0, 10, 100)
y = np.sin(x)

plot_xy(
    x_data=x,
    y_data=y,
    x_label="Time (s)",
    y_label="Amplitude (V)",
    plot_title="Sinusoidal Signal",
    data_label="Channel A",
)
_images/RTD_E2_custom_labels.png

Scatter Plot

Pass is_scatter=True to switch from a line to a scatter plot — same function, same parameters, one flag.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_xy

x = np.random.randn(100)
y = 2 * x + 1 + np.random.randn(100) * 0.5

# use of `is_scatter` parameter to generate the scatter plot
plot_xy(x, y, is_scatter=True, x_label="X", y_label="Y", plot_title="Noisy Relationship")

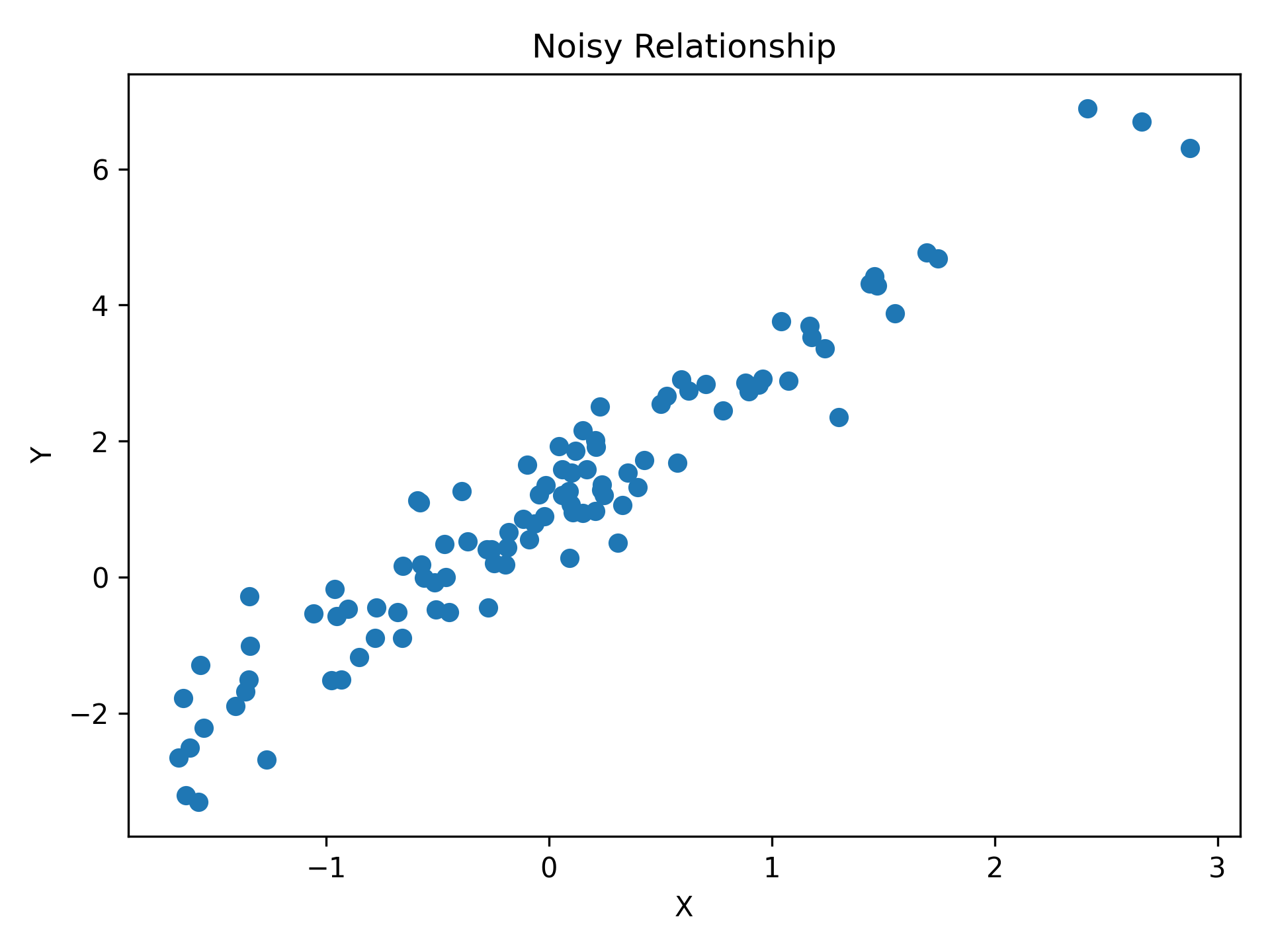

_images/RTD_E3_scatter_plot.png

Error Visualization

Basic Error Bars

y_err (and x_err) can be a scalar (same error everywhere) or an array (per-point errors). Caps are shown by default and controlled via capsize.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_errorbar

rng = np.random.default_rng(1234)

x = np.linspace(0, 10, 20)
y = np.sin(x)
y_err = 0.3 * rng.random(size=y.shape)

plot_errorbar(x, y, y_err=y_err, auto_label=True)

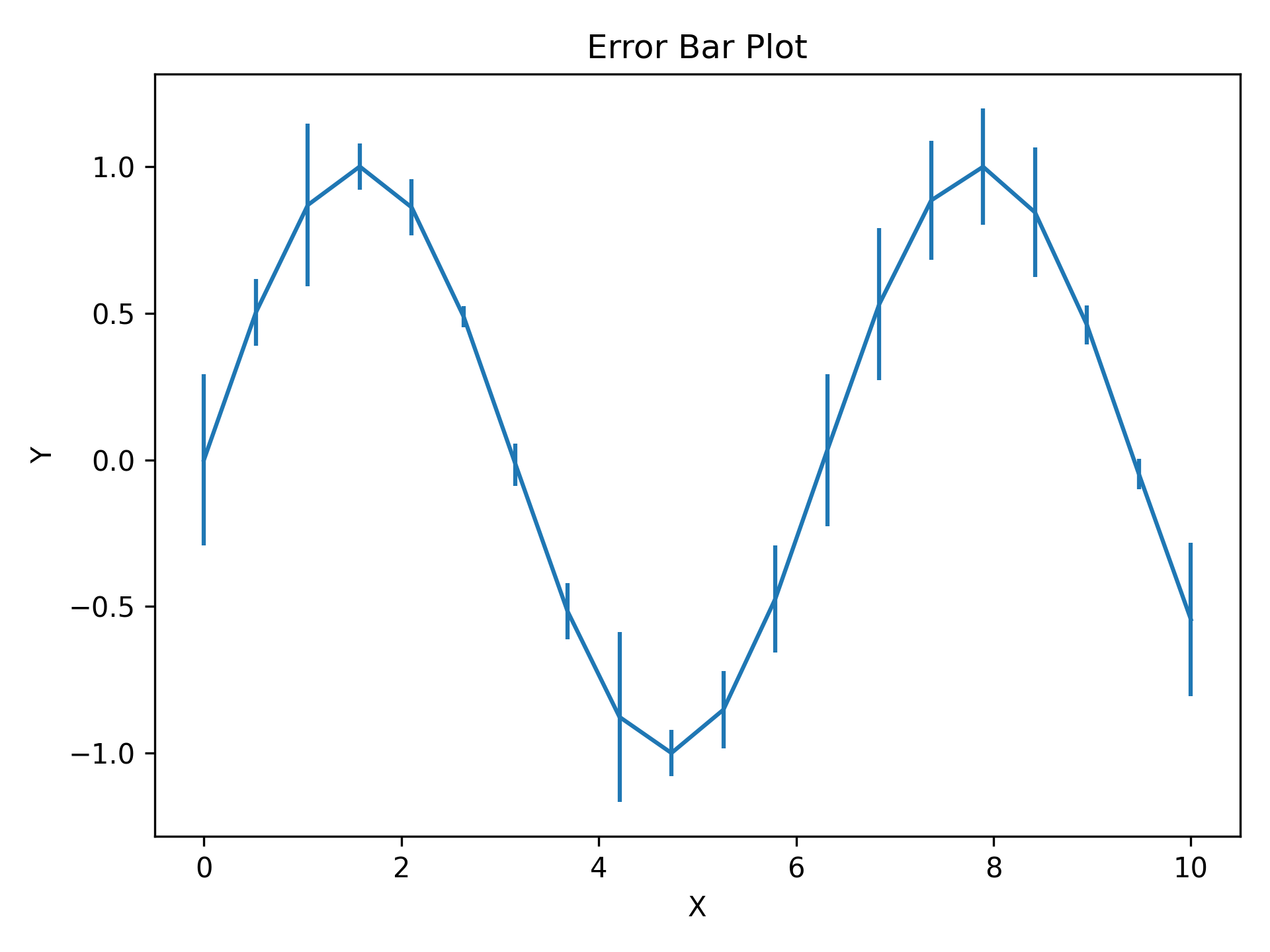

_images/RTD_E4_errorbar.png

Styled Error Bars

ErrorPlotConfig exposes every line styling option plus specialized error bar parameters. ecolor sets the error bar colour independently from the line colour; elinewidth sets the error bar line thickness.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_errorbar
from plotez.backend import ErrorPlotConfig

x = np.linspace(0, 10, 20)
y = np.sin(x)
y_err = 0.2

ep = ErrorPlotConfig(
    color="darkblue",  # Line and marker color
    linewidth=2,
    marker="o",
    markersize=6,
    capsize=5,
    ecolor="crimson",  # Error bar color (different!)
    elinewidth=1.5,
    markerfacecolor="gold",
)
plot_errorbar(
    x_data=x,
    y_data=y,
    y_err=y_err,
    x_label="X",
    y_label="Y",
    plot_title="Errorbar demonstration",
    data_label="Measurements",
    errorbar_config=ep,
)

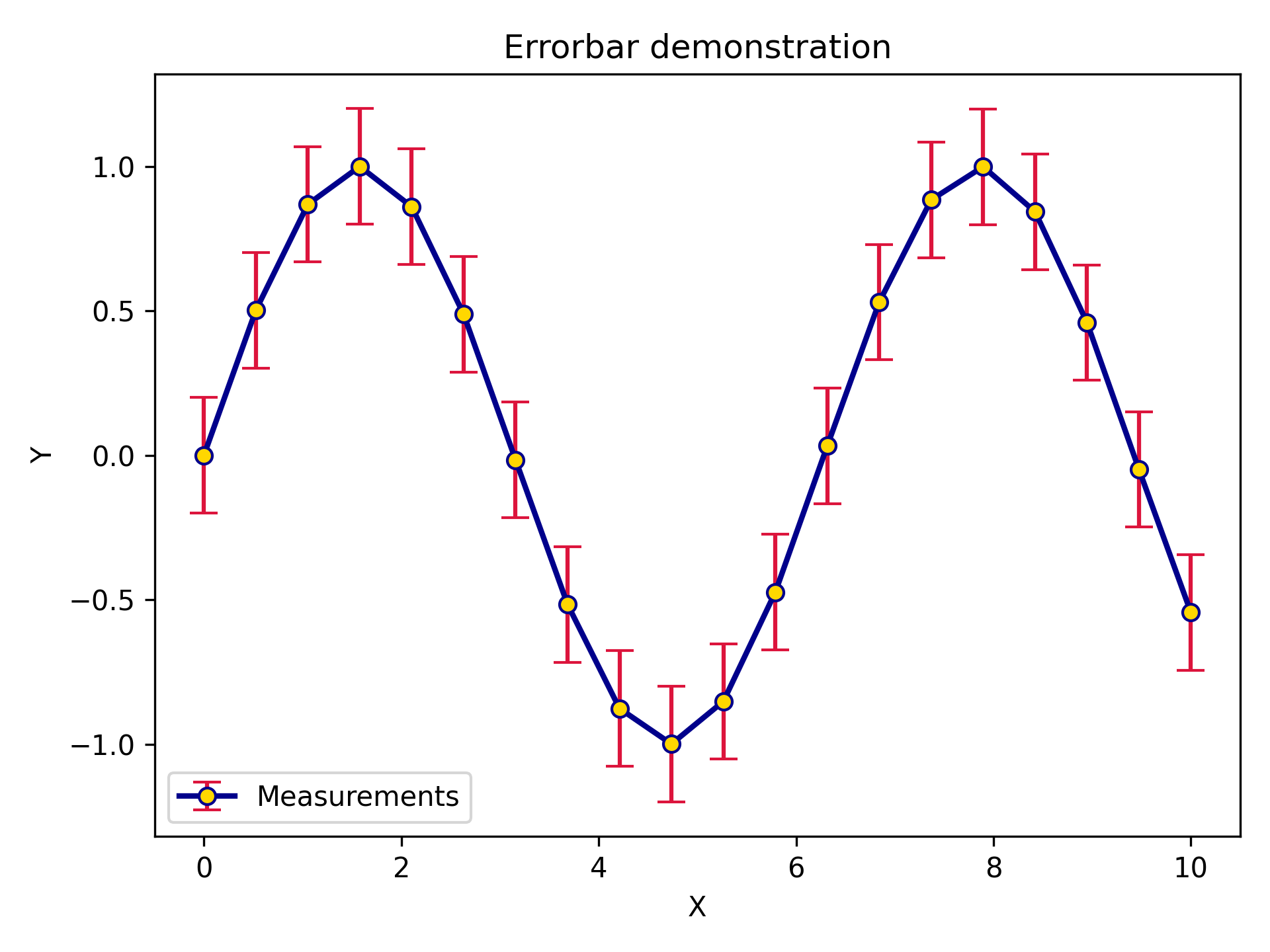

_images/RTD_E5_errorbar_customized.png

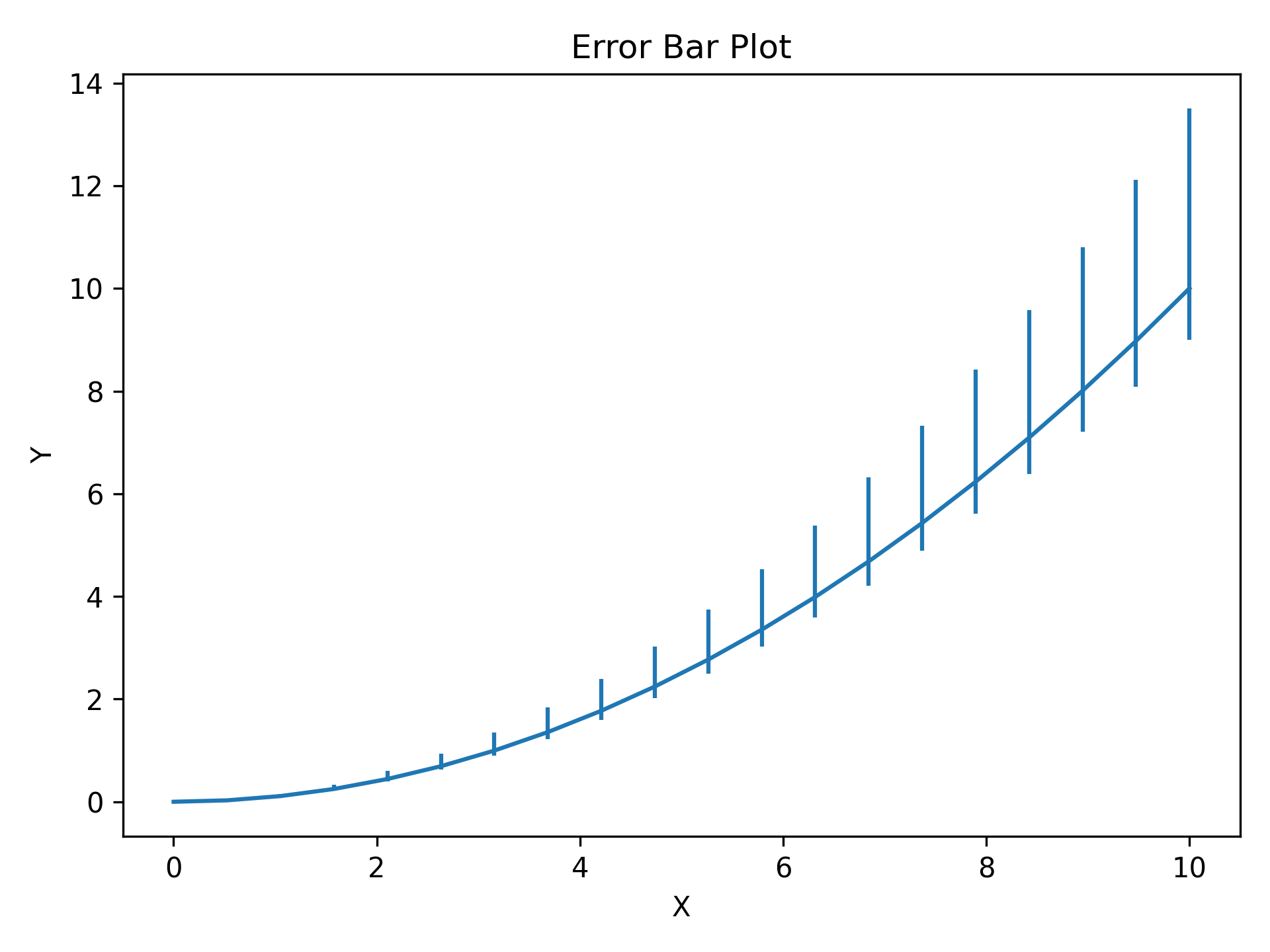

Asymmetric Errors

Pass a (2, N) array to y_err (or x_err) for different lower and upper uncertainties — first row is lower errors, second row is upper errors.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_errorbar

x = np.linspace(0, 10, 20)
y = x**2 / 10

# Shape (2, N): [lower_errors, upper_errors]
y_err = np.array([0.1 * y, 0.35 * y])  # Lower (10% of value)  # Upper  (35% of value)
plot_errorbar(x, y, y_err=y_err, auto_label=True)
_images/RTD_E6_asym_errors.png

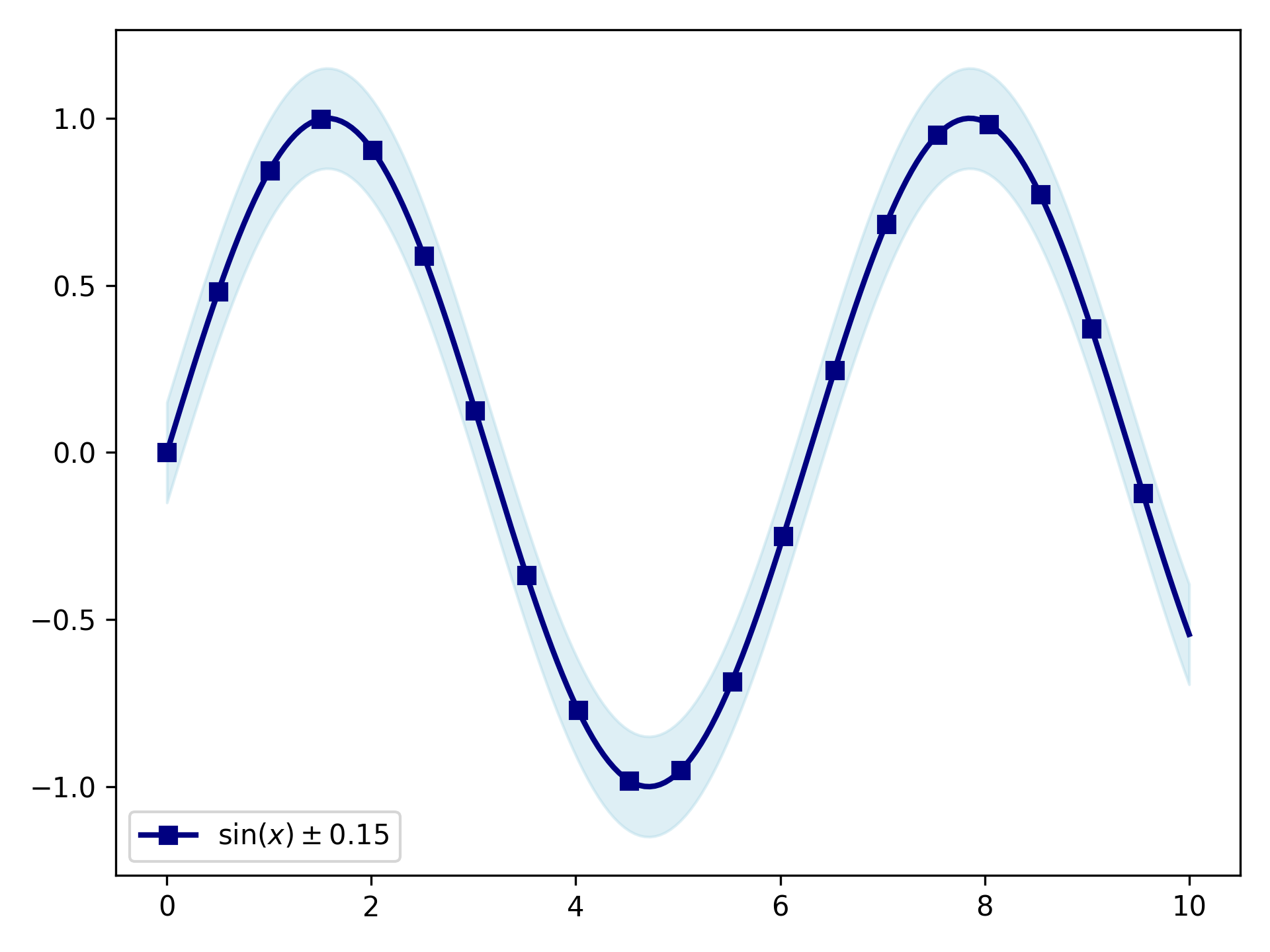

Error Bands

For dense, continuous data shaded bands are cleaner than individual error bars. y_lower and y_upper are absolute values (not offsets); band_config controls the fill and line_config controls the central line.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_errorband
from plotez.backend import ErrorBandConfig, LinePlotConfig

x = np.linspace(0, 10, 200)  # Dense sampling
y = np.sin(x)
y_lower = y - 0.15
y_upper = y + 0.15

band_cfg = ErrorBandConfig(color="lightblue", alpha=0.4)
line_cfg = LinePlotConfig(color="navy", linewidth=2, marker="s", _extra={"markevery": 5})

plot_errorband(
    x_data=x,
    y_data=y,
    y_lower=y_lower,
    y_upper=y_upper,
    band_config=band_cfg,
    line_config=line_cfg,
    data_label=r"$\sin(x) \pm 0.15$",
)
_images/RTD_E7_errorbands.png

Multi-Panel Layouts

Two Subplots

two_subplots wraps n_plotter for the common two-panel case. Use orientation='h' for side-by-side or 'v' for stacked; subplot_title labels each panel individually.

import matplotlib.pyplot as plt
import numpy as np

from plotez import two_subplots

x = np.linspace(0, 10, 100)
y1 = np.sin(x)
y2 = np.cos(x)

two_subplots(
    x_data=[x, x],
    y_data=[y1, y2],
    orientation="v",  # works with both 'v' and 'vertical'
    x_labels=["Time (s)", "Time (s)"],
    y_labels=["Amplitude", "Amplitude"],
    data_labels=["Sine", "Cosine"],
    figure_kwargs={"figsize": (6, 8)},
)

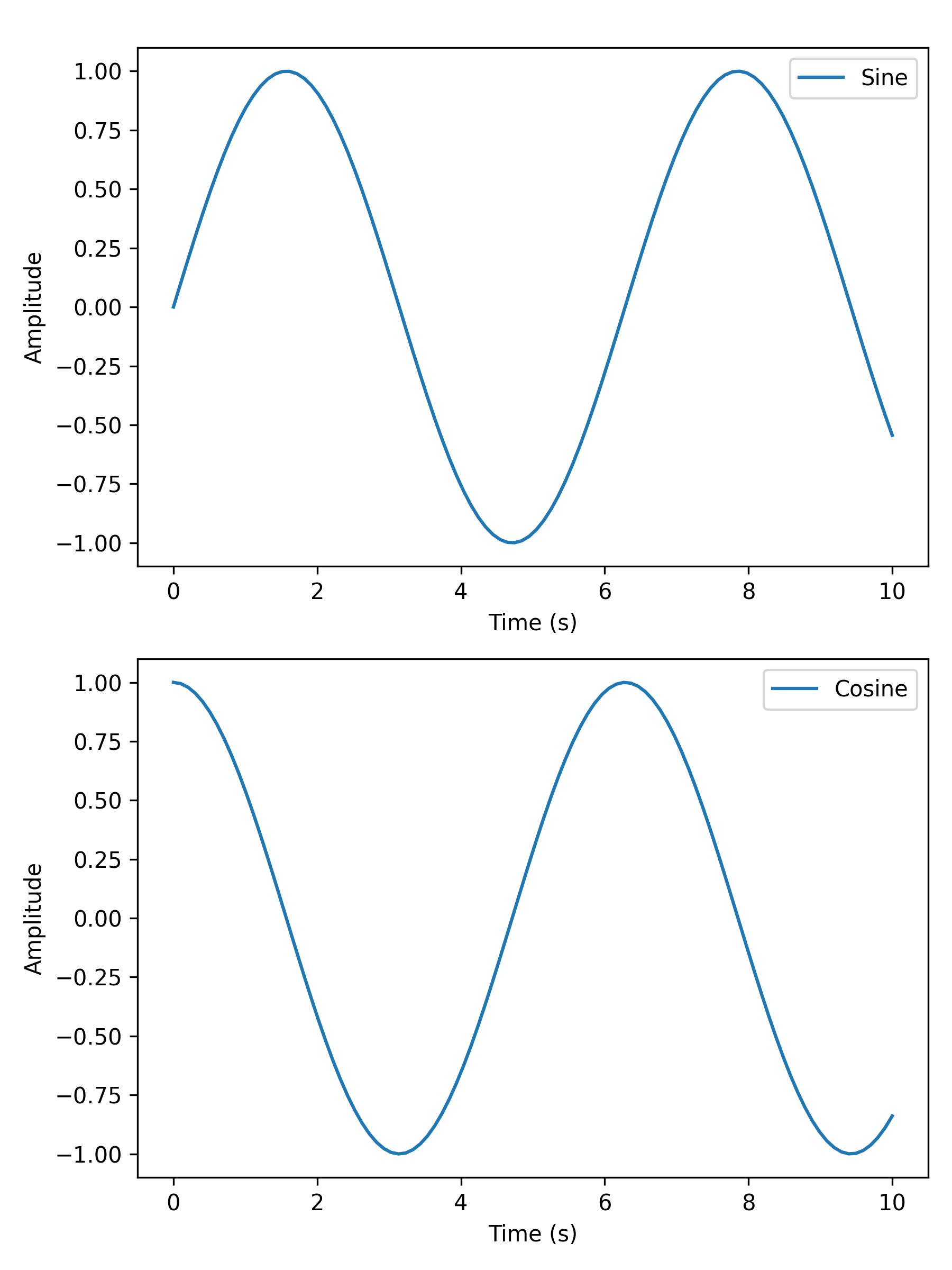

_images/RTD_E8_two_subplots.png

Grid of Four

n_plotter handles arbitrary N×M grids. Config parameters passed as lists apply per-subplot, cycling if the list is shorter than the panel count.

import matplotlib.pyplot as plt
import numpy as np

from plotez import n_plotter
from plotez.backend import LinePlotConfig

x_data = [np.linspace(0, 10, 100) for _ in range(4)]
y_data = [np.sin(x_data[0]), np.cos(x_data[1]), np.tan(x_data[2] / 5), x_data[3] ** 2 / 50]

config = LinePlotConfig(color=["red", "blue", "green", "purple"])

n_plotter(
    x_data=x_data,
    y_data=y_data,
    n_rows=2,
    n_cols=2,
    data_labels=[r"$\sin(x)$", r"$\cos(x)$", r"$\tan(x/5)$", r"$x^2$/50"],
    plot_config=config,
)

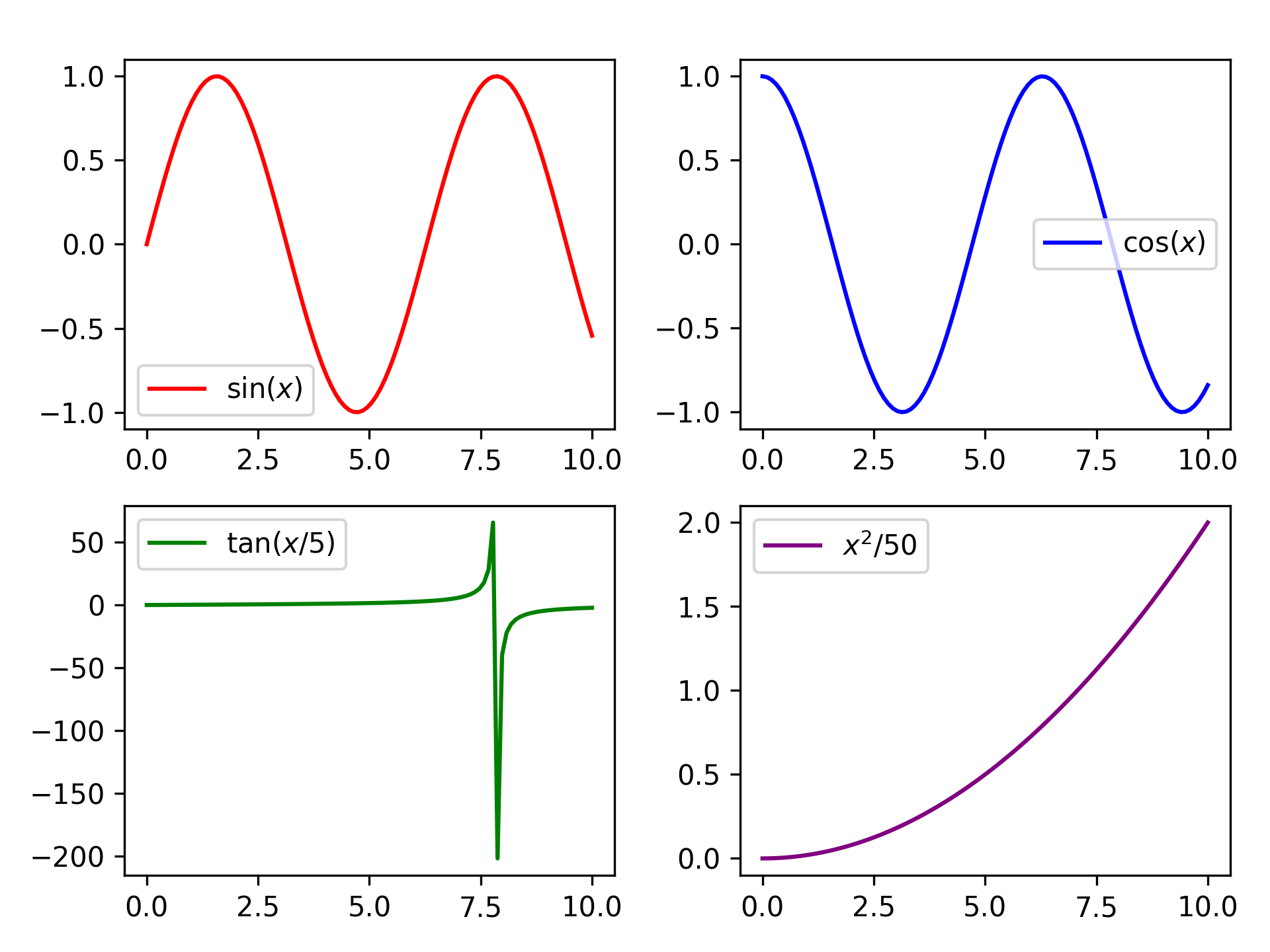

_images/RTD_E9_grid_of_four.png

Shared Axes

Pass figure_kwargs={"sharex": True, "sharey": True} to lock axis ranges across all panels — redundant tick labels are hidden automatically.

import matplotlib.pyplot as plt
import numpy as np

from plotez import LinePlotConfig, n_plotter

rng = np.random.default_rng(1234)

x_data = [np.linspace(0, 10, 100) for _ in range(4)]
y_data = [x * np.cos(x) for x in x_data]

fig_kwargs = {"sharex": True, "sharey": True, "figsize": (10, 8)}
line_plot_cfg = LinePlotConfig(
    color=["red", "blue", "green", "gold"],
    markeredgecolor=["k"] * 4,
    marker=["o", "s", "d", "^"],
    _extra={"markevery": [5, 2, 3, 10]},
)

n_plotter(
    x_data=x_data,
    y_data=y_data,
    n_rows=2,
    n_cols=2,
    plot_config=line_plot_cfg,
    figure_kwargs=fig_kwargs,
    auto_label=True,
)

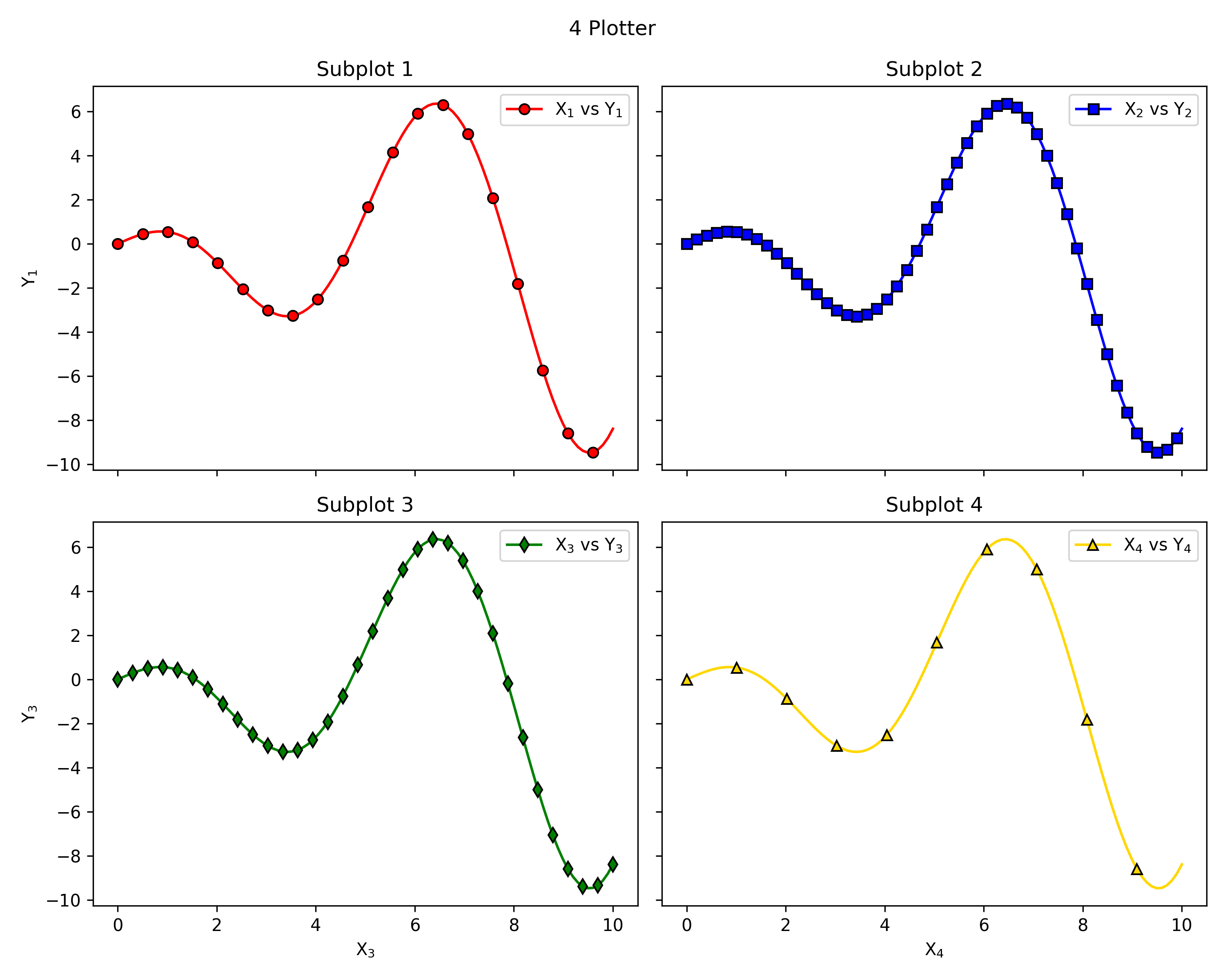

_images/RTD_E10_shared_axes.png

Customization

Config Classes

LinePlotConfig (and its siblings ErrorPlotConfig, ErrorBandConfig, ScatterPlotConfig) give full IDE autocomplete and are reusable across multiple plots. Any matplotlib parameter not covered by a named field can be forwarded via the _extra dict.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_errorbar
from plotez.backend import ErrorPlotConfig

x = np.linspace(0, 10, 20)
y = np.sin(x)
y_err = 0.2

ep = ErrorPlotConfig(
    color="darkblue",  # Line and marker color
    linewidth=2,
    marker="o",
    markersize=6,
    capsize=5,
    ecolor="crimson",  # Error bar color (different!)
    elinewidth=1.5,
    markerfacecolor="gold",
    _extra={"markevery": 2},  # The `_extra` keyword can take non-defined matplotlib keywords
)
plot_errorbar(
    x_data=x,
    y_data=y,
    y_err=y_err,
    x_label="X",
    y_label="Y",
    plot_title="Errorbar demonstration",
    data_label="Measurements",
    errorbar_config=ep,
)
_images/RTD_E5-2_errorbar_customized.png

Shorthand Helpers

lpc, epc, ebc, and spc are factory functions that accept familiar matplotlib aliases (c, lw, ls, ms, mec, mfc) and return the corresponding config object — no class import required.

from plotez import lpc, epc, ebc, spc

line = lpc(c='steelblue', lw=2, ls='--', marker='o', ms=4)
ep = epc(c='darkblue', ls=':', lw=2, marker='d', ms=6, capsize=8, elinewidth=2, ecolor='red')
band = ebc(c='cyan', alpha=0.3, ec='k', ls='--', hatch='/')
dots = spc(c='orange', s=40, alpha=0.7, marker='^')

See the API Reference page for the full shorthand key reference.

Error Handling

PlotEZ provides domain-specific exceptions for clear, catchable error handling. All exceptions are available from plotez.backend.error_handling.

Exception Hierarchy

from plotez.backend.error_handling import (
    PlotError,           # Base for all plotting errors
    DataError,           # Base for data-related errors
    ConfigurationError,  # Base for config/parameter errors

    # Data errors
    ShapeError,          # Invalid array shape (e.g., bad error array)
    EmptyDataError,      # Empty required data
    ColumnCountError,    # File doesn't have 2 columns

    # Configuration errors
    OrientationError,    # Invalid plot orientation
    AxisLabelError,      # axis_labels has wrong length
    TwinXDataError,      # x2_data given with use_twin_x=True
    TwinYDataError,      # y2_data given with use_twin_x=False

    # Warnings
    LabelConflictWarning # auto_label overriding user labels
)

Catching Specific Exceptions

Catch specific errors for precise error handling:

import numpy as np
from plotez import plot_errorbar
from plotez.backend.error_handling import ShapeError

x = np.array([1, 2, 3])
y = np.array([1, 2, 3])
bad_err = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])  # Wrong shape!

try:
    plot_errorbar(x, y, x_err=bad_err)
except ShapeError as e:
    print(f"Invalid error array: {e}")

Catching by Base Class

Use base classes to catch multiple related errors:

from plotez import plot_with_dual_axes
from plotez.backend.error_handling import DataError, ConfigurationError

try:
    # Your plotting code here
    plot_with_dual_axes([], [1, 2, 3], auto_label=False,
                       axis_labels=['X', 'Y'])
except DataError:
    print("Data-related error occurred")
except ConfigurationError:
    print("Configuration error occurred")

Filtering Warnings

Use Python’s warnings module to filter or escalate custom warnings:

import warnings
from plotez.backend.error_handling import LabelConflictWarning

# Suppress label conflict warnings
warnings.filterwarnings('ignore', category=LabelConflictWarning)

# Or escalate them to errors
warnings.filterwarnings('error', category=LabelConflictWarning)

Real-World Workflows

Plotting from CSV Files

plot_two_column_file reads any two-column delimited file directly — no pandas boilerplate. The file must have exactly two columns (x, y); use skip_header=True to ignore a header row.

import matplotlib.pyplot as plt

from plotez import plot_two_column_file

plot_two_column_file(
    "sensor_data.csv",
    delimiter=",",
    skip_header=True,
    x_label="Time (s)",
    y_label="Temperature (°C)",
    plot_title="Sensor Readings",
    data_label="Thermocouple",
    is_scatter=True,
)

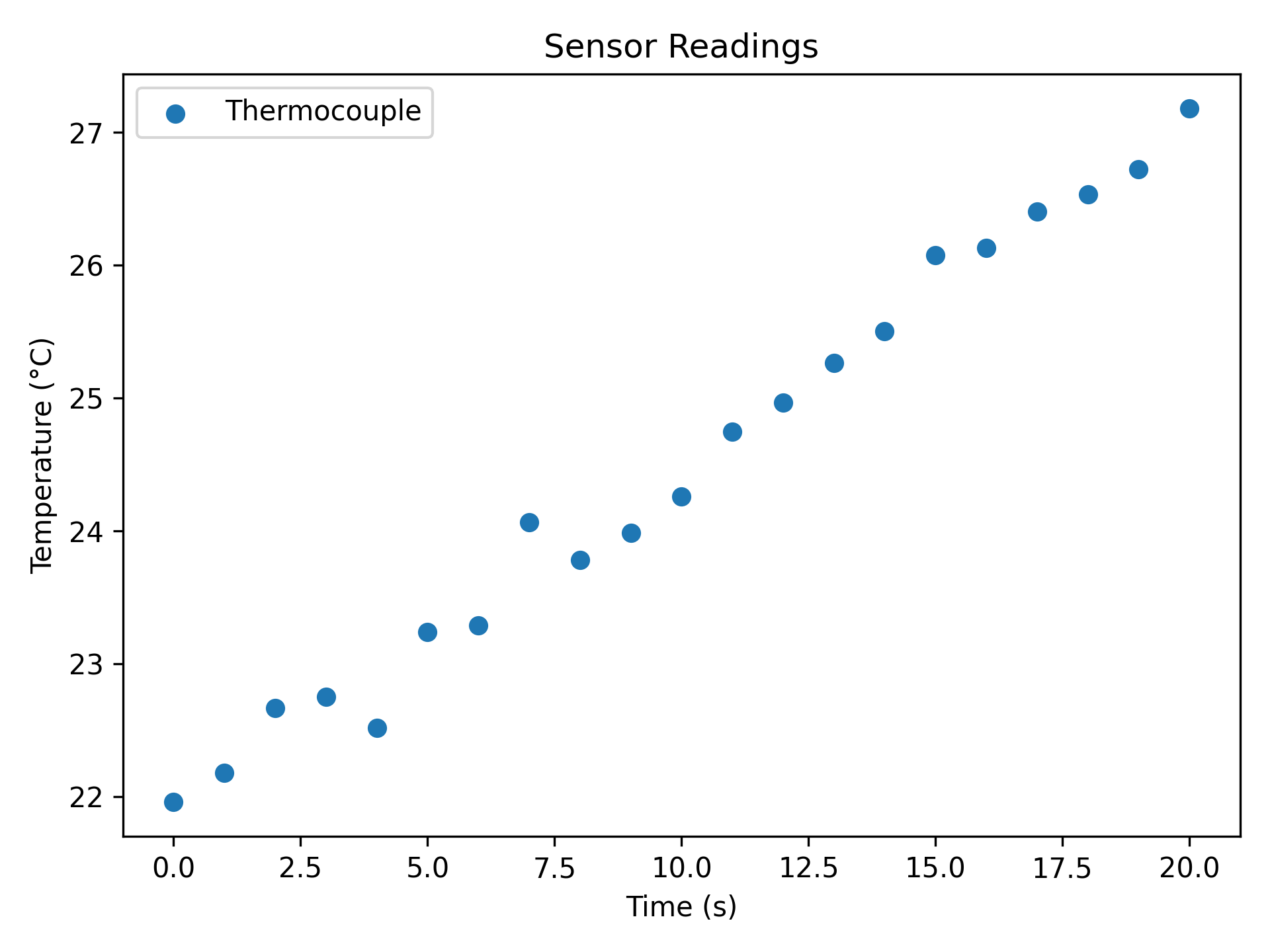

_images/RTD_E11_from_files.png

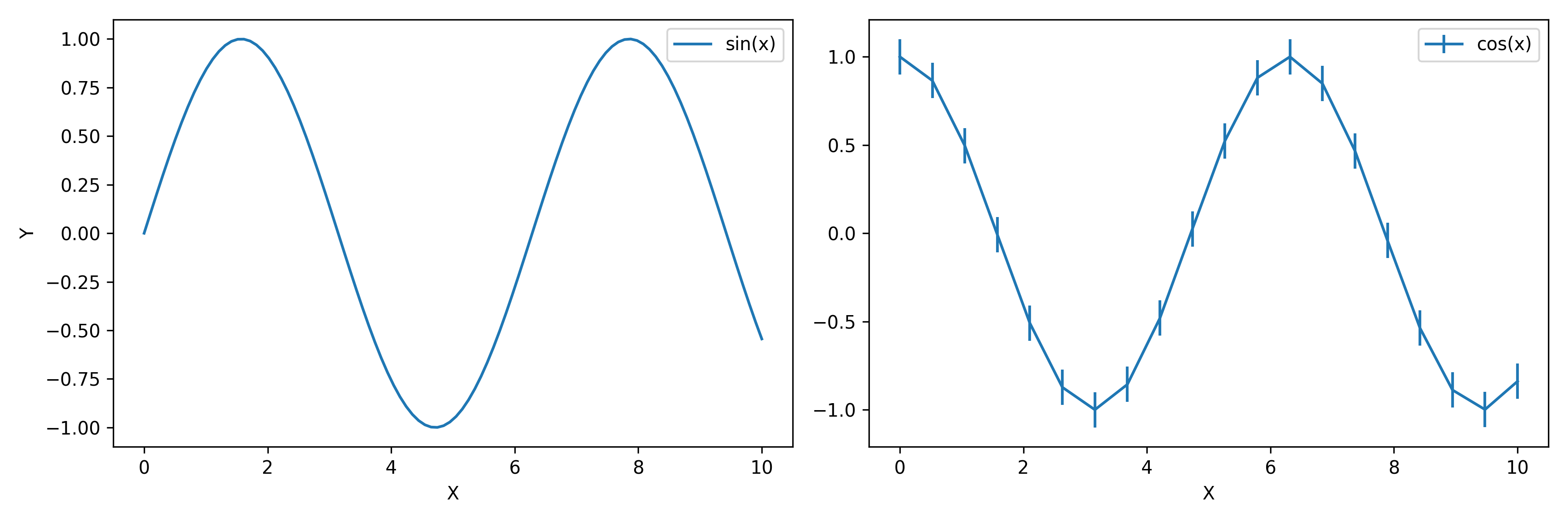

Mixing with Matplotlib

All plotez functions accept an axis keyword so you can drop them into any existing matplotlib figure. They return the Axes object for further customisation.

import matplotlib.pyplot as plt
import numpy as np

from plotez import plot_errorbar, plot_xy

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 4))

# Plotez on first subplot
x = np.linspace(0, 10, 100)
y1 = np.sin(x)
plot_xy(x, y1, axis=ax1, x_label="X", y_label="Y", data_label="sin(x)")

# Plotez on second subplot
x2 = np.linspace(0, 10, 20)
y2 = np.cos(x2)
y_err = 0.1
plot_errorbar(x2, y2, y_err=y_err, axis=ax2, x_label="X", data_label="cos(x)")
_images/RTD_E12_matplotlib_integration.png

Next Steps

  • See API Reference for complete function and config-class signatures.

  • Check Changelog for version history.

  • Browse the examples/ directory for all runnable scripts.
